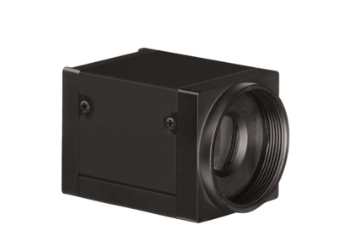

AcquCAM Pro/S3
(Down load Catalog_ACQUCAM PRO/S3)
AcquCAM Pro/S3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive mono CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.
- 1.2 Mega pixel CCDcamera
- Monochrome, Progressive scan
- Preview software provided (JNOPTIC Capture)
- Software compatible with Windows XP/ Vista/ 7/ 8 operating systems
Apply Pseudo color for live fluorescence
Apply Pseudo color for black live fluorescence
Emphasis function for variety images
Getting clear image with general light source
[Specification]
| Spec | Description |
| Size | 1/3 inch |
| Resolution | H: 1280, V: 960 |
| Pixel size | H: 3.75 µm, V: 3.75 µm |
| Video formats & Frame rate | 1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps |
| Sensitivity | 0.015 lx |
| Exposure time | 1/10000 to 30 s |
| Lens mount | C/Cs mount |
| Interface | USB 3.0 |
| Power supply | 4.5 to 5.5 VDC |
| Dimensions | H: 29 mm, W: 29 mm, L: 43 mm |
| Mass | 65 g |
