AcquCAM 23S2

AcquCAM 23S2

가시광선 & 근적외선(NIR) 관찰

CA3 pyramidal neuron IR-DIC Camera : AcquCAM 23S2
CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time
Figure courtesy by Dr. Sooyun Kim, Seoul National University
with Bx51WI, JNO-DPTS, AcquCAM 23S
JNO-DPTS
JNO-DPTS CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time Figure courtesy by Dr. Sooyun Kim, Seoul National University with Bx51WI, JNO-DPTS, AcquCAM 23S
  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Pregius Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Cost-effective mono camera for fluorescence microscope (Best)
  • Cost-effective camera for Department of Physiology (Best)
  • 1/1.2 inch optimized sensor size for microscope field of view
  • Acquire images of optimum width combined with 0.63x adapter
Microscopy Camera
AcquCAM 23S2

AcquCAM 23S2 mono camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The mono camera ships with the very sensitive 1/1.2 inch CMOS Pregius  sensor. With up to 162 images per second, the AcuqCAM 23S2 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses.

Images with AcquCAM 23S2
AcquCAM 23S2 Fluorescence camera DAPI, FITC, TRITC
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-U(B), B(B), G(B) Camera : AcquCAM 23S2 C-mount adapter : 1x Lens : UPlanAPO 40x Above three images are merged and processed using ARM S/W
AcquCAM 23S2 Fluorescence camera DAPI, FITC, TRITC
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-U(B), B(B), G(B) Camera : AcquCAM 23S2 C-mount adapter : 1x Lens : UPlanAPO 40x Above three images are merged and processed using ARM S/W

Specification

SpecDescription
  Size  1/1.2 inch
  Resolution  H: 1920, V: 1200
 Pixel size  H: 5.86 µm, V: 5.86 µm
 Video formats & Frame rate1920×1200  Y16    @    80 fps
1920×1200  Y800 @ 162 fps
  Sensitivity  0.015 lx
  Exposure time  20㎲ to 30 s
  Lens mount  C/Cs mount
  Interface  USB 3.0
  Power supply  4.5 to 5.5 VDC
  Dimensions  H: 29 mm, W: 29 mm, L: 43 mm
  Mass  65 g

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

Accessories, PHYSIOLOGY

JNO-WICD-02

JNO-WICD-02

Filter Holder for BX50 WI

(OLYMPUS  – 32BP775)

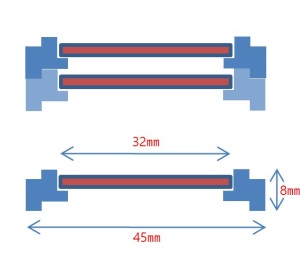

45㎜ holder for 32㎜ filter



  •  45㎜ 필터용 위치에 32㎜ 필터를 사용할 수 있도록 만든  홀더
  • 여러개의 필터를 중첩하여 사용 가능함.
  • BX50-WI (Olympus)  광학 유닛 업그레이드시에 JNO-DICD-01과 같이 사용되어 지며,  32BP775 설치시에 필요한 홀더임.

45㎜ holder for 32㎜  filter
Filter holder for transmitted light (OLYMPUS BX)



APPLICATION, MICROSCOPY, PHYSIOLOGY, SIMULTANEOUS

JNO-DPTS

Multi-Dual Port ( Simultaneously Observation )

Download  Catalog  JNO-DPTS

To observe Fluorescence image  and IR DIC image  at the same time
with Multi-Dual Port tube for BX51-WI
(Made by Jae Hwan JIN )

JNO-DPTS JNOPTIC Multi-Dual Port System
JNO-DPTS JNOPTIC Multi-Dual Port System
  1. Simultaneously Observation
Optical path of JNO-DPTS
Optical path of JNO-DPTS IR-DIC 이미지는 투과 되고, Visivle 이미지 반사되어 각각의 카메라로 전달 된다.

Simultaneously observation

CA3 pyramidal neuron, IR-DIC & Alexa Fluor 488 (50 uM)

1FullF6_2
1FullF6_2
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron Alexa Fluor 488, IR-DIC (Simultaneous observations) Figure courtesy by Dr. Sooyun Kim, Seoul National University
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron AcquCAM 23S2 & JNO-RNB filter with BX51WI
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron AcquCAM 23S2 & JNO-RNB filter with BX51WI
Frame Rate162 fps, increased through ROI
Sensor1 / 1.2 inch ( 1920×1200, 5.86㎛ x 5.86㎛ )
FILTERJNO-RemN/B (Noisy cut filter)
Manification1x, 1.25x, 1.6x, 2x
APPLICATION, PHYSIOLOGY

JNO-WI-3

X Y Mover & Bridge Stage

Description
Material   Aluminum
표면 처리   Black –Anodizing
Travel Range (mm)   X    ±12.5     Y    ±12.5
높이 (mm)   170  ~ 220
Tap Hole 규격   M6
Tap Hole 간격 (mm)   X    25    Y    25



Camera, Fluorescence, PHYSIOLOGY

AcquCAM 23S

AcquCAM 23S

(Down load Catalog ACQUCAM 23S)

  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23S
EXMOR Sensors: Next-generation imaging sensors based on CMOS, increase the strength and reduce noise.



High sensitivity camera available from visible to IR range

20151120_1(CA1 pyramidal neuron)
Apply high sensitivity EXMOR sensor with additional filter block visible range, IR Cut filter image could be observed.



Available wider range of observation

AcquCAM 23S_6
By applying a 1 / 1.2 ” EXMOR sensor, you can observe a wider range of superior sensitivity image.
These images were shot by AcquCAM 23S Package.

High sensitivity and fast frame image

AcquCAM 23S_(CA3 pyramidal neuron)

AcquCAM 23S_(Dentate gyrus Granule cell)
To maximize the range of imaging possible observation with fast frame 54Fps and high sensitivity 0.015 lx .

[Specification]

Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats

& Frame rate

 1920×1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Sensitivity 0.015 lx
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g



AcquCAM, Camera, Fluorescence, PHYSIOLOGY

AcquCAM Pro/S3

AcquCAM Pro/S3

(Down load Catalog_ACQUCAM PRO/S3)

AcquCAM Pro/S3

AcquCAM Pro/S3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive mono CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCDcamera
  • Monochrome, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Apply Pseudo color for black live fluorescence

AcquCAM Pro S3_6

Emphasis function for variety images

Getting clear image with general light source

[Specification]

SpecDescription
Size1/3 inch
ResolutionH: 1280, V: 960
Pixel sizeH: 3.75 µm, V: 3.75 µm
Video formats & Frame rate1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity0.015 lx
Exposure time1/10000 to 30 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
