Microscope, MICROSCOPY, SIMULTANEOUS

BX51WI

Fixed Stage Microscopes

패치클램프용 고정 스테이지 정립 현미경

ELECTROPHYSIOLOGY MICROSCOPE

AcquCAM Mono Camera for Physiology

CA3-pyramidal neuron_Alexa- Fluor-488 (This Image taken by AcquCAM 23S )
CA3-pyramidal neuron_Alexa- Fluor-488 (This Image taken by AcquCAM 23S )

Simultaneous observation
fluorescence observation image and IR-DIC image

Multi-Dual Port ( JNO-DPTS made by J.H.Jin )

JNOPTIC Multi-Dual Port System
Optical path of JNO-DPTS
IR-DIC 이미지와 형광 이미지의 실시간 동시 관찰
The optical design of this equipment was designed by J.H.JIN ( JNOPTIC Co., ltd )

AcquCAM 23S2 with Electro-Phyology

전기생리학 실험을 위한 패치 전용 카메라

with FV1200
AcquCAM 23S2
with BX51
with Nikon FN1
with Zeiss

형광 이미징용 광원장치 – CoolLED pE-340fura

XY-MOVER & BRIDGE STAGE
(JNO-WI-3 made by JNOPTIC Co., ltd)

XY-MOVER

XY-Mover
with Zeiss Microscope
XY-MOVER made by JNOPTIC co.,ltd

Accessories

Revolving nosepiece
Revolving nosepiece
Revolving nosepiece
DIC Prism & Analyzer
오염된 대물렌즈

전기생리학 – Best Image

CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron Alexa Fluor 488, IR-DIC (Simultaneous observations) Figure courtesy by Dr. Sooyun Kim, Seoul National University

IR – DIC 촬영 조건

  • NIR Camera : AcquCAM 23S
  • Microscope : OLYMPUS BX51WI

IR-DIC 와 형광이미지의 동시 촬영

CA3 pyramidal neuron with IR DIC Image
CA3 pyramidal neuron_IR-DIC
(동시 촬영 – 카메라 1)
CA3 pyramidal neuron with Alexa Fluor 488
CA3 pyramidal neuron_AlexaFluor488 (동시 쵤영- 카메라 2)

Simultaneous observations ( IR – DIC & 형광 ) 촬영 조건

  • NIR Camera : AcquCAM 23S
  • Microscope : OLYMPUS BX51WI
  • Multi Dual Port : JNO-DPTS (개발자: J.H.JIN )

전기생리학 전용 현미경 기능 개선

  • Microscope FN1 – Image Upgrade 후 이미지 비교
Before
After

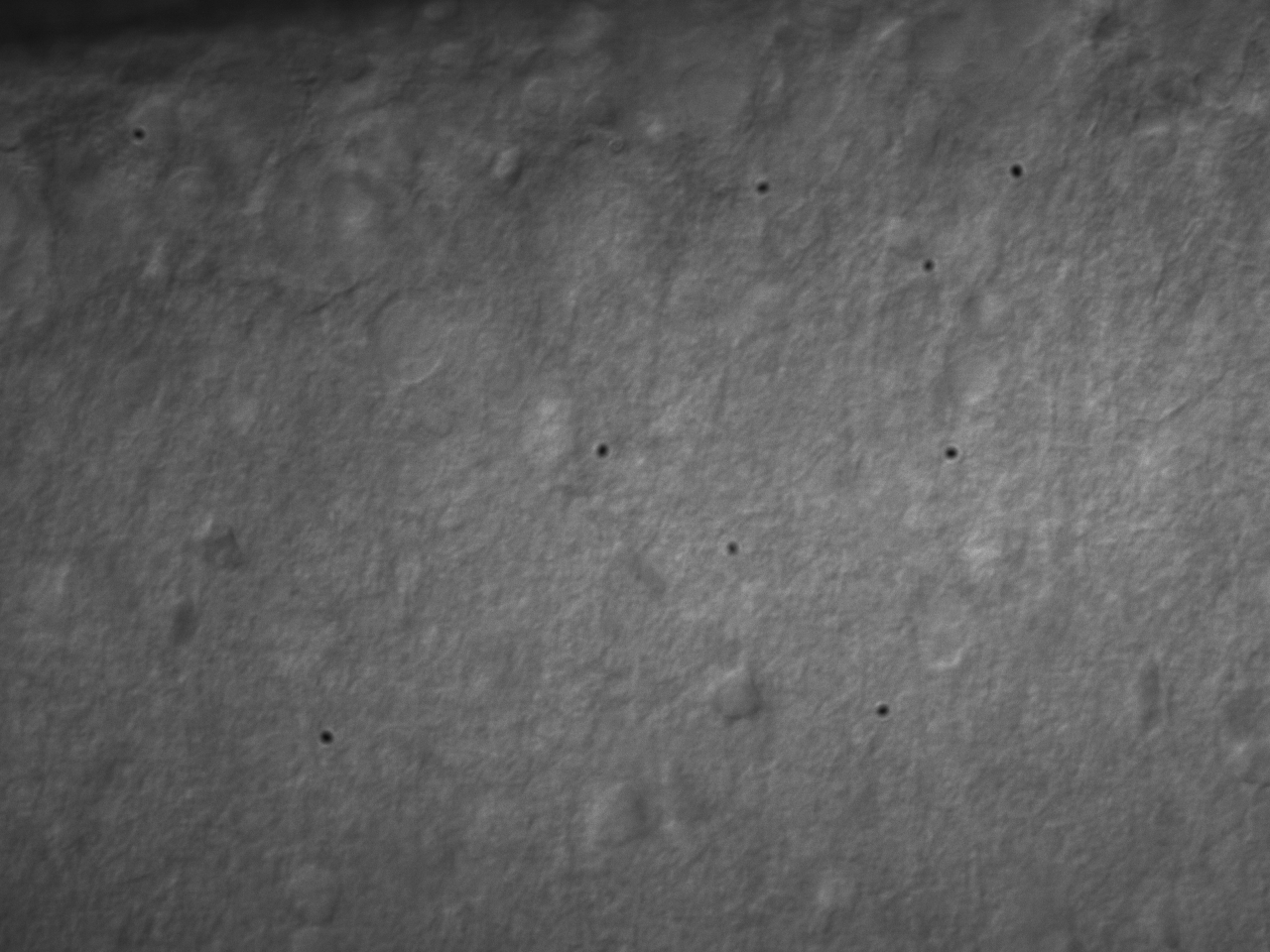

DIC Upgrade Image by J.H.JIN (이미지 비교)
NIKON FN1 & AcquCAM 23S2 & JNO-NIR
